- Suds-proof reservoir
- Unitized construction
- Structural foam polypropylene
- Fits under utility sink reservoir
- Simple, time-saving installation
- Allows sink installation without breaking concrete
- No main stack vent connection
- 8-ft cord and plug
- Sealed switch assembly
- NSPC section 11.7.9, check local codes
- Only suitable for 60Hz operation; Imperial Thread versions only

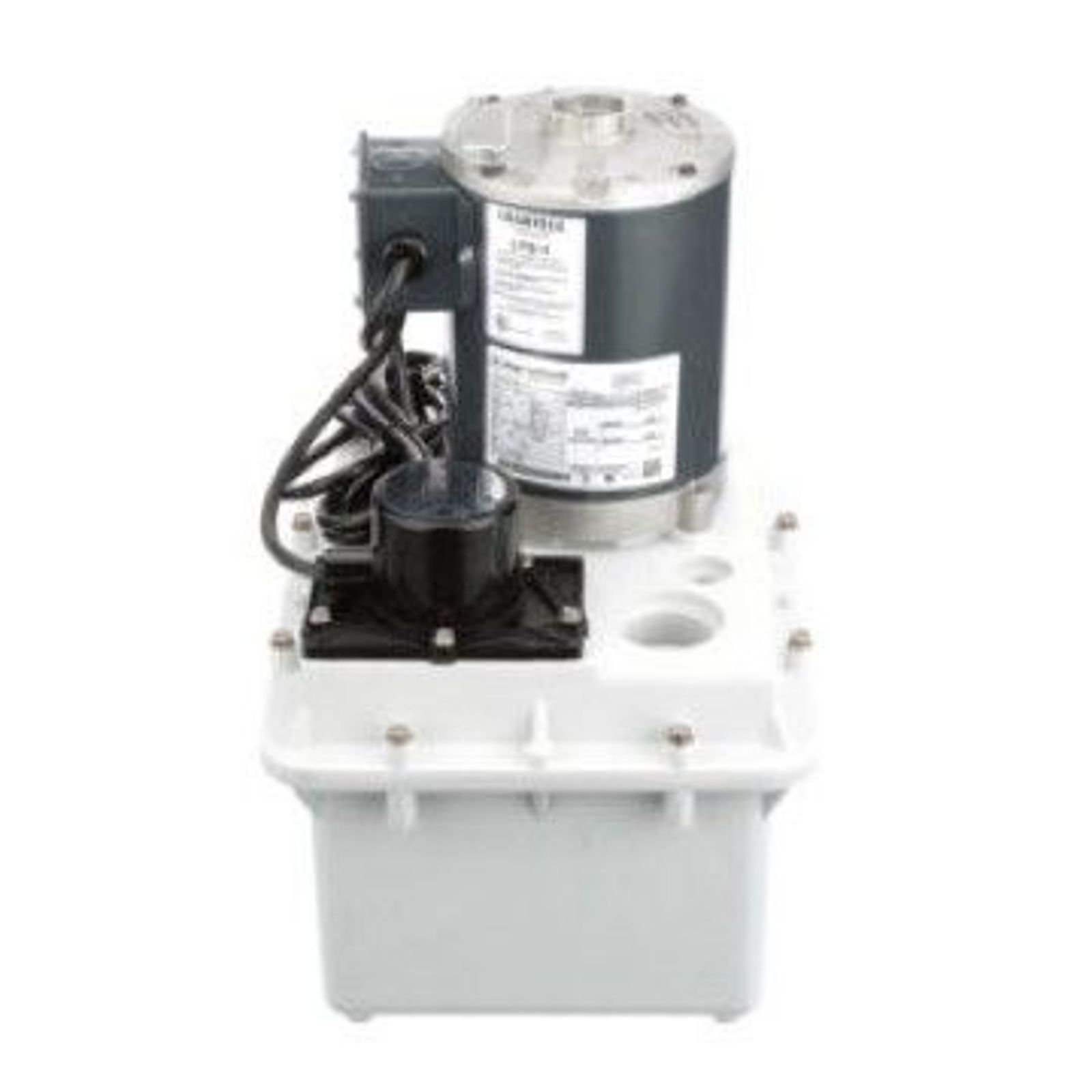

LTP/LTS series, designed with a reservoir for laundry, wet bar, and industrial applications
LTS medium-temp, high-capacity reservoir pump Heavy-duty pump designed for moving large quantities of water.
Used in commercial applications such as laundry, air conditioning, or refrigeration systems, and multiple-unit installations to tie several drains into one disposal pump.
LTP medium-capacity reservoir pump Designed for laundry and wet bar applications. Primarily used where the sink or appliance is installed below the plumbing drain.
LTP/LTS Specifications
Motor: (hp @ rpm) | 1/4 @ 1725 |
Electrical | 115V 5.0A |
Inlet Size | 1-1/2″ FNPT |
Discharge Size | 1″ FNPT |
Reservoir Capacity | 2 gallon |
Unit Dimensions (WxDxH) | 10″x12″x17″ |
Maximum Temperature | 130°F |
Sealed Reservoir | Vapor seal |
Weight | 24 lbs. |
Pump Performance
Lift (feet) | LTP Flow (gph) | LTS Flow (gph) |
6 | 2370 | 1500 |
12 | 2628 | 2100 |
Maximum Lift | 12 feet | 16.5 feet |
