- 2-gallon cast aluminum reservoir
- Heavy-duty design for industrial applications
- Fits under utility sinks
- Stainless-steel float
- Integral junction box
- Dual voltage motor
- Unitized construction
- Motor bearings have double protection against water splash and steam vapor
- 12-month warranty
- Only suitable for 60Hz operation; Imperial Thread versions only

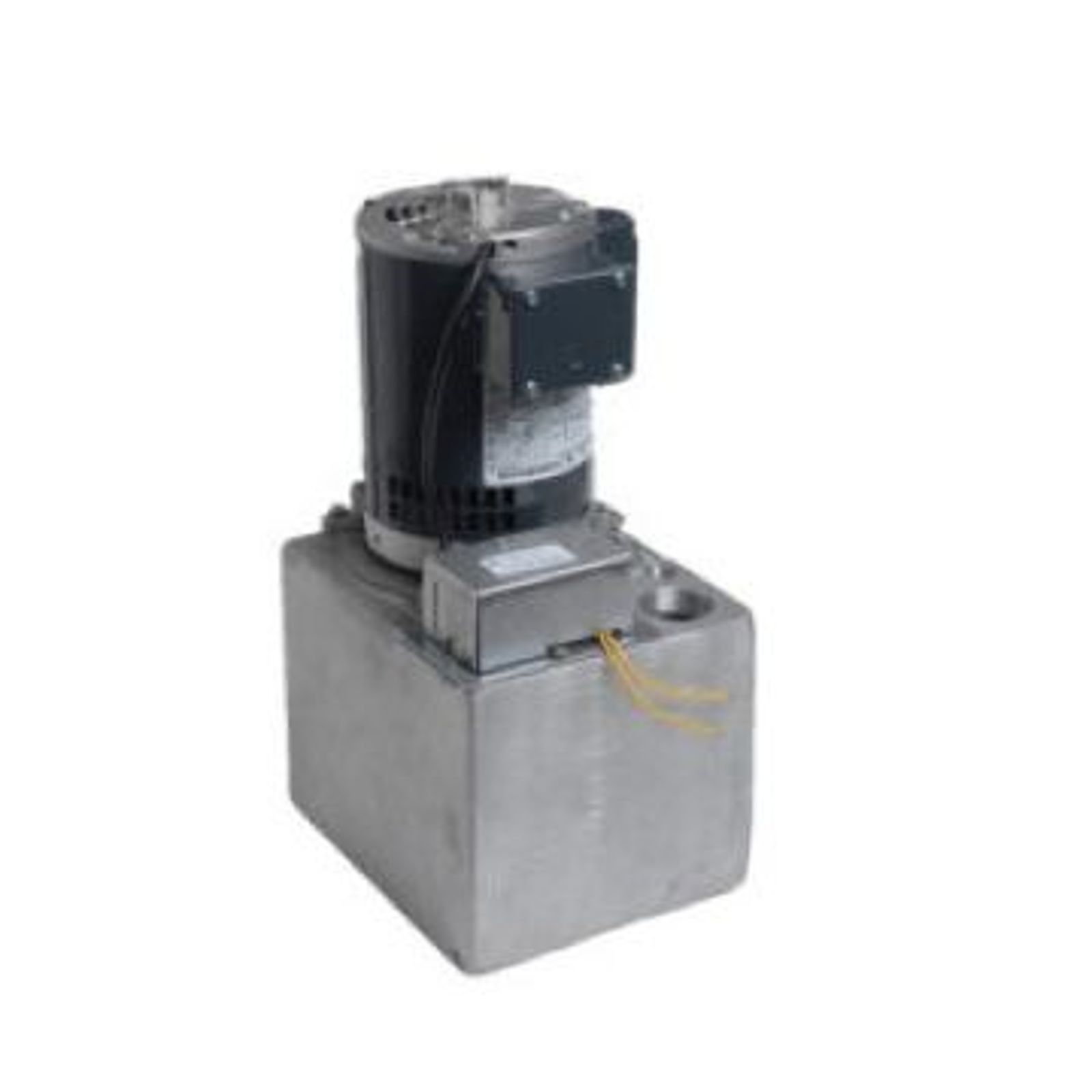

The L4 condensate pump, designed for high volumes
The L4 commercial grade condensate pump series is designed for pumping large quantities of water. Used in commercial and industrial air conditioning systems, large refrigeration units, and multiple unit installations to tie several drains into one disposal pump.
PUMP PERFORMANCE | |
Lift (feet) | Flow (gph) |
6 | 4200 |
12 | 3780 |
18 | 3420 |
24 | 2820 |
36 | 1800 |
Maximum Lift | 45 feet |
SPECIFICATIONS | L4 |
Motor: (hp @ rpm) | 1/2 @ 3450 |
Electrical | 115V 7.46A |
Electrical | 230V 3.7A |
Inlet Size | 1-1/2″ FNPT |
Discharge Size | 1” FNPT |
Reservoir Capacity | 2 gallon |
Unit Dimensions (WxDxH) | 10”x8”x17” |
Maximum Temperature | 150°F |
Sealed Reservoir | No |
Weight | 34 lbs. |
