- 1-gallon heavy-duty cast aluminum reservoir
- Fully automatic operation
- Rated for high temperatures up to 212°F
- Multiple piping arrangements
- Maintenance-free ball bearing design eliminates need for lubrication
- Stainless-steel float
- 6-ft cord and plug
- Thermally protected motor
- 12-month warranty

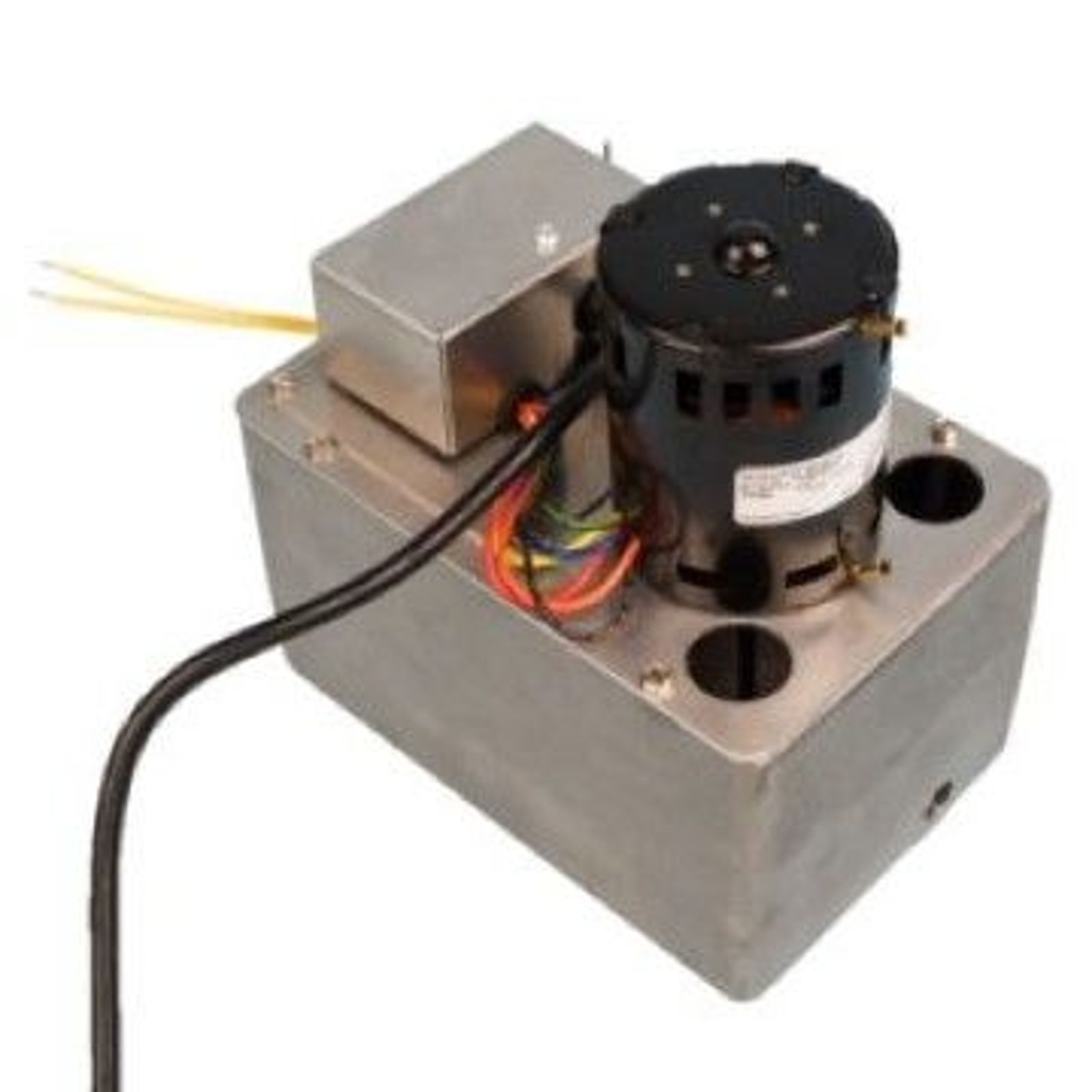

The A2-SA condensate pump features a heavy-duty, maintenance-free design
Hartell’s Model A2-SA commercial grade condensate pump series defines a new standard of quality and performance. These pumps offer unmatched service life by using oil and chemical-resistant, high-temperature rated materials with robust design elements. Additionally, these pumps offer motor protection from steam and water splash, helping to ensure maximum motor life.
PUMP PERFORMANCE | |
Lift (feet) | Flow (gph) |
6 | 185 |
12 | 139 |
18 | 79 |
Maximum Lift | 20 feet |
SPECIFICATIONS | A2-SA |
Motor: (hp @ rpm) | 1/10 @ 3000 |
Electrical | 115V 3.5A |
Electrical | 230V 2.0A |
Inlet Size | Two 1-1/4″ inlets |
Discharge Size | 3/8” FNTP |
Reservoir Capacity | 1 gallon |
Unit Dimensions (WxDxH) | 6”x9”x11” |
Maximum Temperature | 212°F |
Sealed Reservoir | No |
Weight | 12 lbs. |
