- Automatic pressure switch
- ABS high-impact, corrosion resistant plastic construction
- Integral junction box
- 8-ft cord and plug
- Mounts directly to sink tailpiece
- No traps required
- Fits inside 24” base cabinets
- Fits under wet bars, utility sinks, kitchenettes, and vanities
- Simple, time-saving installation
- No main stack vent connection required
- Takes up zero floor space
- Allows sink installation without breaking concrete
- Only suitable for 60Hz operation; Imperial Thread versions only
LTA pumps are designed as completely self-contained units that are easy to connect directly to laundry tray tubs

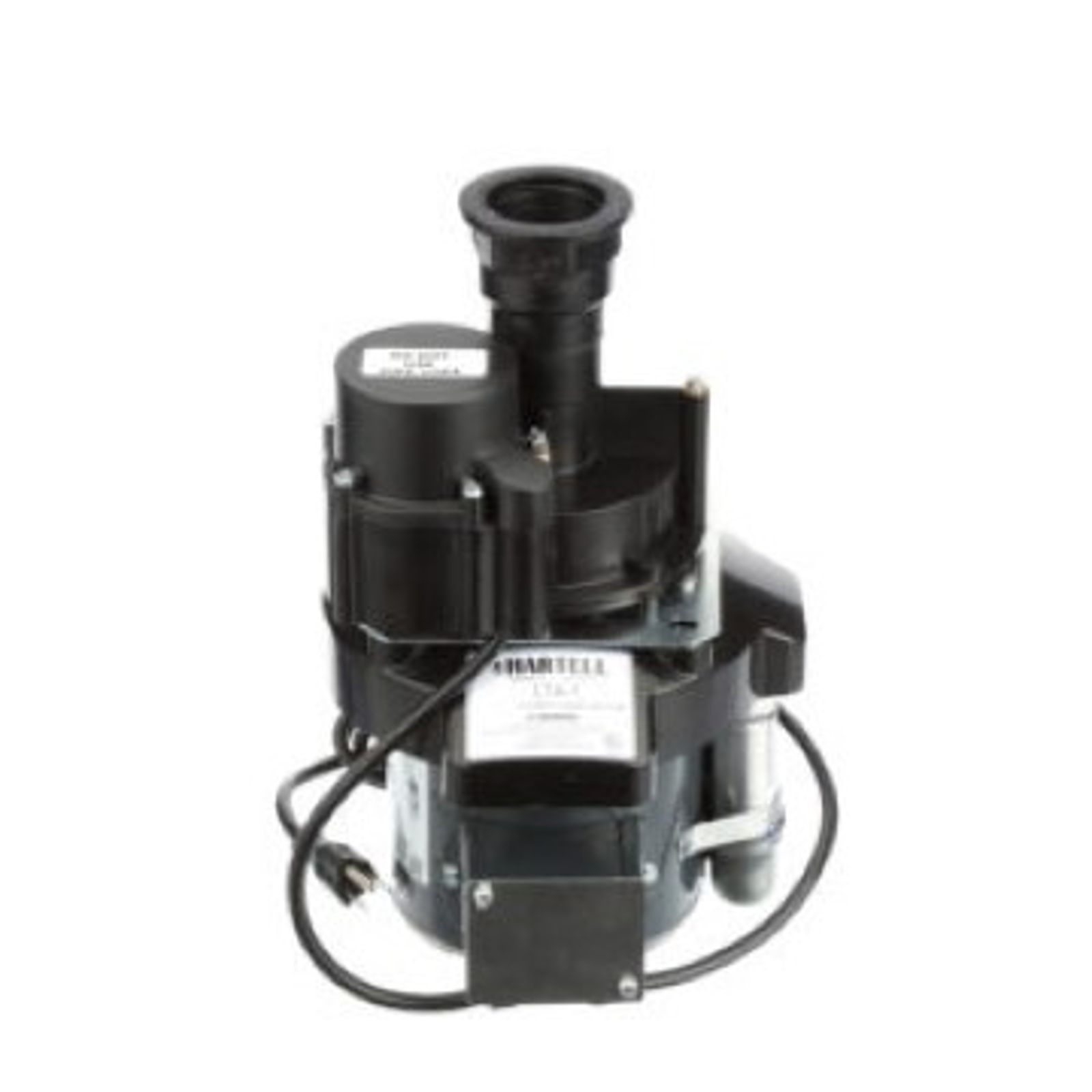

Hartell’s LTA series direct mount pump is a completely self-contained unit that easily connects directly to laundry tray tubs.
Lightweight and compact, this model eliminates reservoirs, traps, extra fittings, and costly labor. This pump includes a pressure activated switch that turns on the pump when water enters the tub.
Specifications
Motor: (hp @ rpm) |
1/8 @ 1670 |
Electrical |
115V 2.2A |
Inlet Size |
1-1/2″ FNTP |
Discharge Size |
1” MNTP |
Reservoir Capacity |
Direct mount |
Unit Dimensions (WxDxH) |
7”x8”x14” |
Maximum Temperature |
140°F |
Sealed Reservoir |
N/A |
Weight |
19 lbs. |
Pump Performance
Lift (feet) | Flow (gph) |
6 | 1560 |
10 | 600 |
Maximum Lift | 11 feet |
LTA Utility Sink Pump
Inspection, Operation and Maintenance plan (IOM)
LTA Utility Sink Pump
Data Sheet
