- Four-quart heavy budy ABS plastic reservoir
- Auxiliary safety switch
- Three inlets: 1-1/8” and 1-3/8” top inlets with ¾” FNPT alternate inlet at base
- Suitable for gas condensing furnace applications
- 22-foot maximum lift
- Factory installed full-flow check valve
- 6-ft power cord and molded plug
- Maximum temperature 110°F
- 12-month warranty

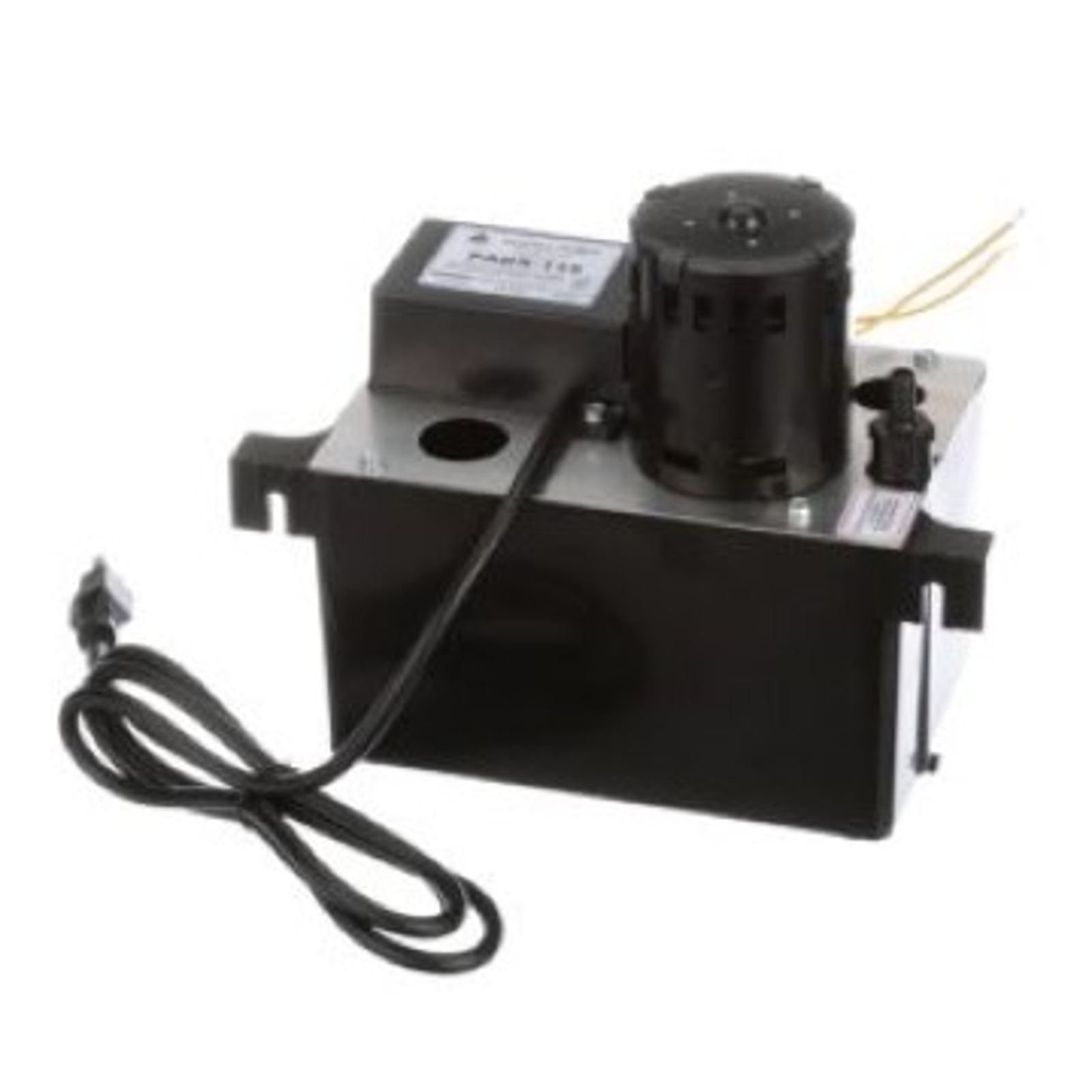

The PABX condensate pump, a light commercial grade pump designed for higher lift and greater capacity
The PABX is Hartell’s light commercial condensate pump, rounding out our commercial condensate line. It is the ideal pump for applications requiring higher lift and greater capacity than standard residential condensate pumps. The PABX has an integral full-flow check valve and a high torque motor. A safety auxiliary switch and three inlets including an alternate inlet at the base come standard with this model.
SPECIFICATIONS | PABX-115 | PABX-230 |
Motor: (hp @ rpm) | 1/20 @ 3000 | 1/25 @ 3000 |
Electrical | 115V 1.6A | 230V .84A |
Inlet Size | 1-1/8″ and 1-3/8″ top | 3/4″ FNPT at base |
Discharge Size | 3/8″ barbed | 3/8″ barbed |
Reservoir Capacity | 4 quarts | 4 quarts |
Unit Dimensions (WxDxH) | 9.25”x6”x9.75” | 9.25”x6”x9.75” |
Maximum Temperature | 110°F | 110°F |
Sealed Reservoir | No | No |
Weight | 6 lbs. | 6 lbs. |
PUMP PERFORMANCE | ||
Lift (feet) | Flow (gph) | Flow (gph) |
6 | 155 | 155 |
12 | 135 | 135 |
18 | 90 | 90 |
20 | 68 | 68 |
Maximum Lift | 22 feet | 22 feet |
